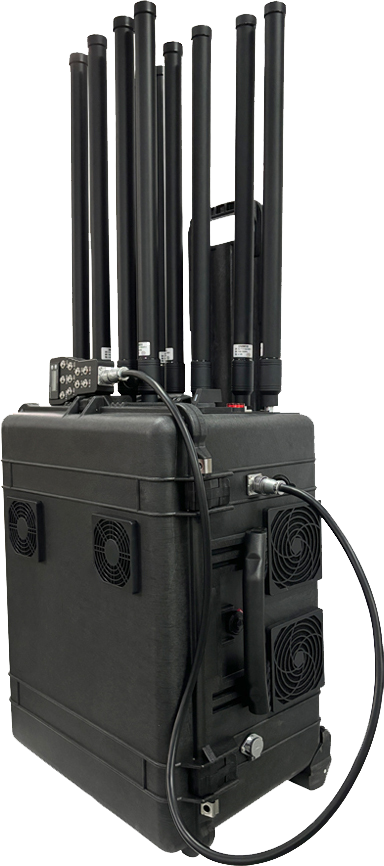

Portable Box Pulling Drone Countermeasure Equipment

GWDEF-CM800

This is a portable high-power drone countermeasure device with a suitcase design that is easy to move and carry, and convenient for multi destination conversion. It is designed with high-power omnidirectional coverage, covering a range of 1 kilometer. In use, it can create a 1-kilometer drone safety zone, providing protection for life safety and privacy keeping.



Function and features

① Easy to operate and convenient to carry;

② The frequency band is independent and controllable, with a clear purpose;

③ Fast interference response time, quick and effective handling;

④ Working 24 hours all day, with strong adaptability to the environment;

⑤ Develop flexible response strategies based on the target location.

The device adopts a portable design, which can be operated by a single person and can be quickly deployed. It is suitable for single soldier carrying and areas that require drone defense such as the wild field and activity sites. It can also be used in conjunction with fixed equipment to form a more powerful comprehensive defense system.



Operation Parameters

Signal	Working Frequency	Module QTY	Power	Total Power
2.4ghz	2400-2500MHz	2	100W	200W
5. 8ghz	5700-5900MHz	2	50W	100W
1.5ghz	1570-1620MHz	2	30W	30W
Main Body Dimension	670x510x535mm
Main Body Weight	38Kg
Environmental Temperature	-40℃-55℃
Relative Humidity	≤85
Power Consumption	≤6704
Power Input	AC 100V-240V DC:24V
Storage Battery	Built in 40AH lithium battery, can be used for 70-90 minutes
Antenna Parameters	Built in directional antenna gain 10-14dB1 External antenna gain 2-8cB1
Switch Control	Manual switch
Equipment Case	Trolley case
