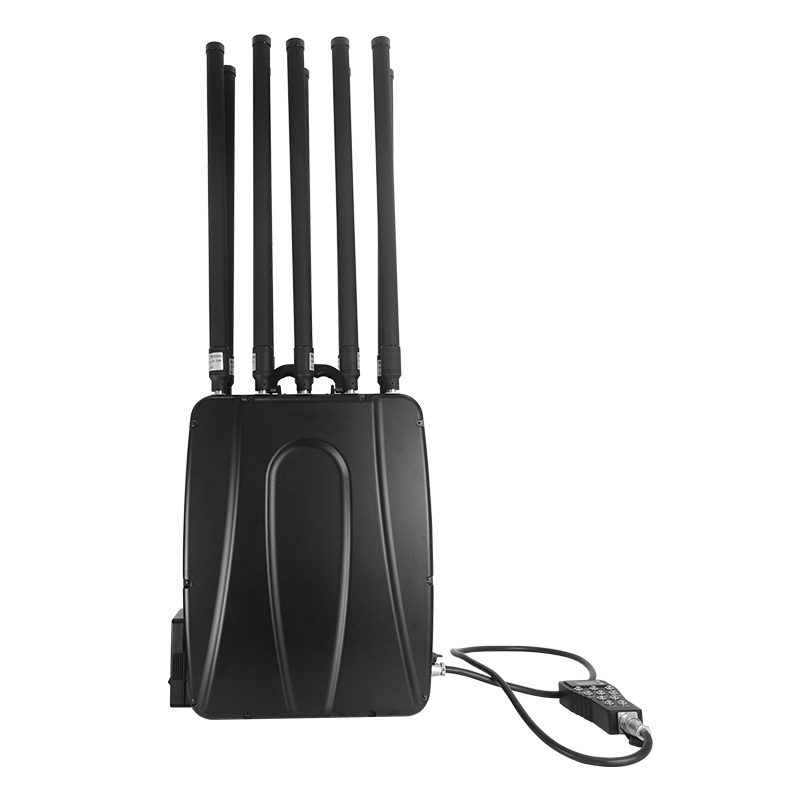

Pack-type Single Soldier UAV Countermeasure Device
GWDEF-CM600
The Pack-type Single Soldier UAV Countermeasure Device is a high-power omnidirectional backpack style unmanned aerial vehicle countermeasure device with built-in lithium batteries. It is easy to operate and can achieve single frequency control. The device adopts narrowband interference technology and radio frequency suppression technology to cut off the connection between the unmanned aerial vehicle and the remote control, thereby forcing the unmanned aerial vehicle to return. And after being controlled, the drone has cut off the image transmission channel, and will not be able to transmit videos, aerial photos, or receive any instructions from ground remote controllers, thus achieving the goal of protecting key areas and preventing privacy from being leaked.
Application Scenarios
Important locations and facilities such as airports, Public Security Procuratorate systems, prisons, security agencies, major sport events, concerts, important conferences, government agencies, and counter-terrorism fields that require spatial confidentiality and drone control.
|
Working frequency band/power |
425-440MHz power 10W |
|
860-930MHz power 10W |
|
|
1100-1200MHz power 10W |
|
|
1400-1500MHz power 10W |
|
|
1555-1620MHz power 10W |
|
|
2400-2500MHz power 100W |
|
|
5150-5350MHz power 20W |
|
|
5825-5852MHz power 50W |
|
|
Battery Capacity |
24V 15A/H |
|
Power Display |
Power Display |
|
Countermeasure Capability |
turn back |
|
Countermeasure Distance |
500~1000m |
|
Countermeasure Angle |
360° |
|
Duration Time |
40 minutes |
|
Charger Type |
29.4V Charging adapter |
|
Dimension
|
Length * width * height: 1085*375*220mm (including antenna length) |
|
Weight |
16.2Kg |
|
Note: OEM customization: module frequency band, power, printings can be made according to customer requirements |
|
