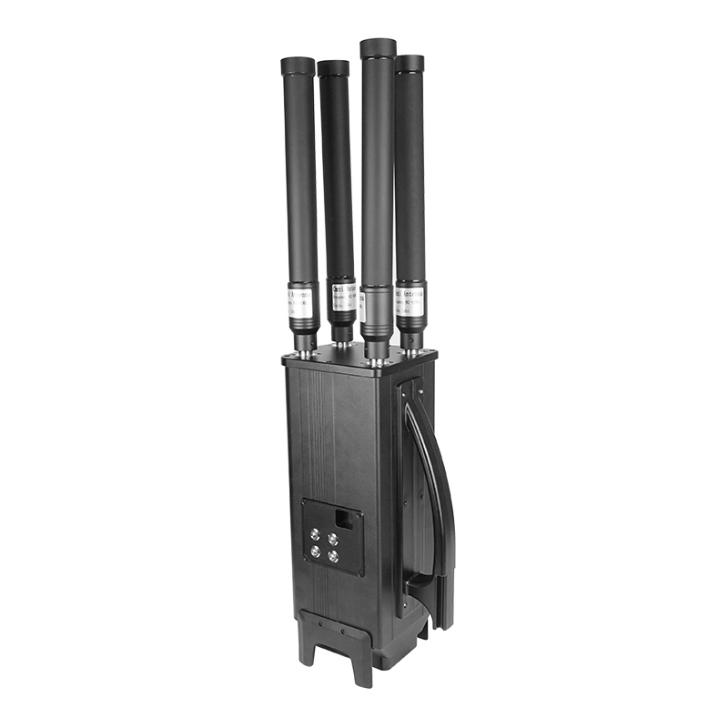

Portable Drone Countermeasure Equipment

GWDEF-CM500

This device interferes with the drone's flight control system and signal transmission system to enable the drone to drive away or make an emergency landing, which can achieve a faster and more accurate strike effect and ensure the safety of the airspace in the area. The product is easy to use, convenient to carry, with an effective shielding distance of 2-3 kilometers (the shielding effect varies depending on the environment and drone model).

1. The product power is up to 160W

2. The shielding distance can reach up to 2-3 kilometers (the shielding distance will vary according to the environment and the model of the UAV)

3. Multi-band can be used for different types of drones

4. Easy to carry and applicable to different scenarios

5. The battery is designed for quick removal

6. Configured with high gain omnidirectional antenna

7. The efficient heat dissipation system could extend the service life

Product Model	GWDEF-CM500
Product Dimension	374*126*137mm
Product Weight	5.15kg
Shielding Frequency	CH1: 840-920 MHz ( 900MHz) 40W CH2: 1559-1620 MHz (1.5 GHz) 40W CH3: 2400-2500 MHz (2.4 GHz) 40W CH4: 5725-5850 MHz ( 5.8 GHz) 40W
Total Output Power	160W
Shielding Distance	2000-3000m (the shielding distance may vary depending on the environment and UAV model)
Working Temperature	-22℃ to +65℃
Battery Parameters	24V  7A
Battery Charging Parameters	AC100-240V-DC24V
Utility Time	30 minutes
