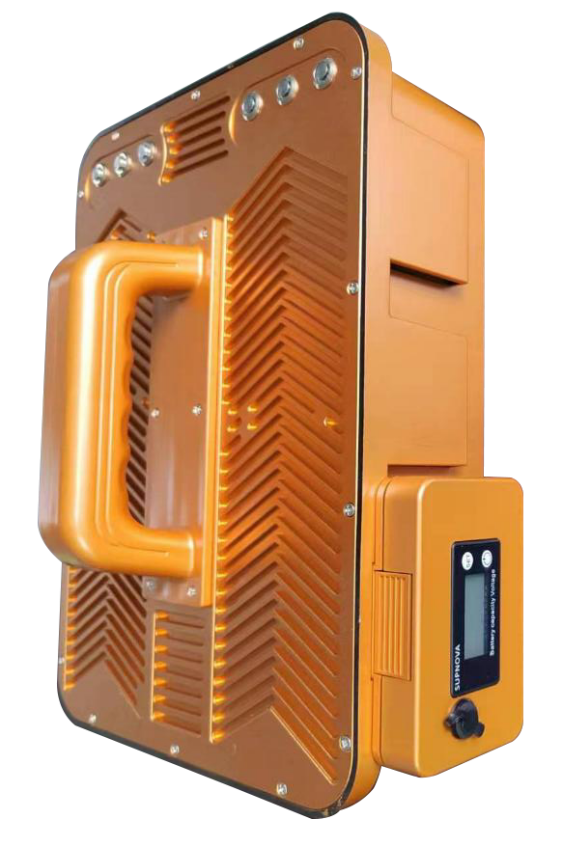

Portable Drone Countermeasure Shield
GWDEF-CM400
As the drone and the remote control are controlled by specific signals, the countermeasure shield can interfere with and counter the drone by emitting strong suppression signals of the same frequency.
Equipment introduction
1. A rare high-power portable drone countermeasure device on the market
2. High integration design, Single channel modularization, with a set up of a single road controllable button
3. The real test countermeasure distance radius is up to 2000 to 2500 meters (depending on the actual operating environment)
4. Small size, light weight, easy to carry
5. Special replaceable battery with a range of about 1 hour
6. With a IP55 level ultra durable shell, it is of waterproof, dust-proof, heat resistant, wear resistant, corrosion resistant
Technical Parameter
|
Index |
Technical Parameters and Requirements |
|
Counter Distance |
About 2000-2500 meters, depending on the actual environment |
|
Countermeasure Frequency Band Output Power |
860-930 MHz 40W |
|
Total output power |
200W |
|
Product Dimension |
335*270*105 mm |
|
Product Weight |
6.2 kg |
|
Shell Material |
The base plate is made of aluminum metal; the shell is made of durable ABS plastic |
|
Type of Battery |
Replaceable lithium ion battery 24V/7A |
|
Battery Life |
About 1 hour |
|
Working Temperature |
-20℃~65℃ |
|
Working Humidity |
30~95% |
|
Power Consumption |
≤480W |
|
Charger Type |
AC29.4V/3A |
