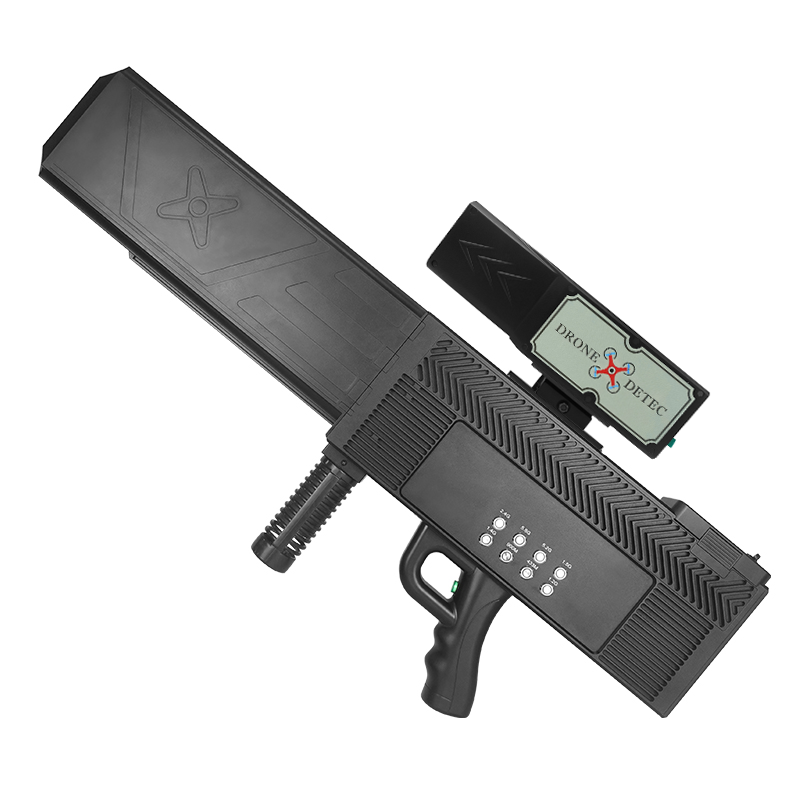

Portable Anti-drone Gun with Integrated Detection and Countermeasures
GWDEF-RMCM200
The Portable Anti-drone Gun with Integrated Detection and Countermeasures is a portable drone countermeasure device consisting of a countermeasure body and a detection body. It first alerts drones from a distance through detection then uses electronic warfare to emit high-power directed electromagnetic waves which can cut off the communication link, video transmission link, and navigation link of drones, forcing them to land on-site or return to the original flight path, thus ensuring airspace safety within approximately 2000-2500 meters.
(1) High power output 200W when countering
(2) Long-range detection is about 1-2 km, and the counter constraint is about 2-2.5 km
(3) Multi-band 8-way countermeasures for more types of drones
(4) High integration shielding module, stable output, accurate countermeasure
(5) The portable and lightweight model is only 6.75KG
(6) The whole machine can last 40-50 minutes
(7) LCD screen shows remaining power and voltage
(8) Unique heat dissipation structure design of the whole machine
(9) IP55 is waterproof, heat resistant and crash resistant
Countermeasure Device Parameters
|
Index |
Technical Parameters and Requirements |
|
Product Dimension |
820*300*80mm |
|
Product Weight |
about 6.45 KG |
|
Shielded Band Parameters |
CH1: 410-485 MHz ( 433 MHz) 10W |
|
CH2: 840-920 MHz ( 900MHz) 10W |
|
|
CH3: 1100-1280 MHz (1.2 GHz) 10W |
|
|
CH4: 1559-1620 MHz (1.5 GHz) 30W |
|
|
CH5: 1300-1390 MHz (1.4 GHz) 10W |
|
|
CH6: 2400-2500 MHz (2.4 GHz) 50W |
|
|
CH7: 5150-5350 MHz ( 5.2 GHz) 30W |
|
|
CH8: 5725-5850 MHz ( 5.8 GHz) 50W |
|
|
Total Output Power |
200W high power |
|
Shielding Distance |
About 2000-2500 meters, depending on the actual environment |
|
Power Supply |
AC100-240V-DC24V |
|
Charging Interface |
DC 5.5-2.1 |
|
Battery Charging Time |
About 4 hours |
|
Battery Parameters |
24V 15A (external battery available) |
|
Battery Duration Time |
Countermeasures start ≥ 30 minutes (accessories include 1 battery) |
|
Standby status ≥ 8 hours |
|
|
Working Temperature |
-22℃ to +65℃ |
|
Relative Humidity |
35~85% |
Detection Device Parameters
|
Index |
Technical Parameters and Requirements |
|
Detection band |
2.4GHz & 5.8GHz |
|
Method
|
Wireless (passive) |
|
Scope |
> 2km @ 2.4g,1km @ 5.8g (depending on the actual environment) |
|
(Directional antenna, flight height 100m, open environment) |
|
|
Alarm Method |
Sound, flashing screen |
|
Display |
LED screen |
|
Charging Interface |
USB Interface |
|
Mode |
Probe mode (easy use) |
|
Setup mode (for professional use only) |
|
|
Spectrum mode (displaying frequency band range and signal strength) |
|
|
Operate |
4 buttons |
|
Battery Capacity |
5000mAh lithium ion rechargeable battery |
|
Duration Time |
8 hours |
|
Product Dimension |
250×55×73mm |
|
Product Weight |
470g |
|
Product List |
Drone detection equipment, installation tracks, charger and charging cable |
