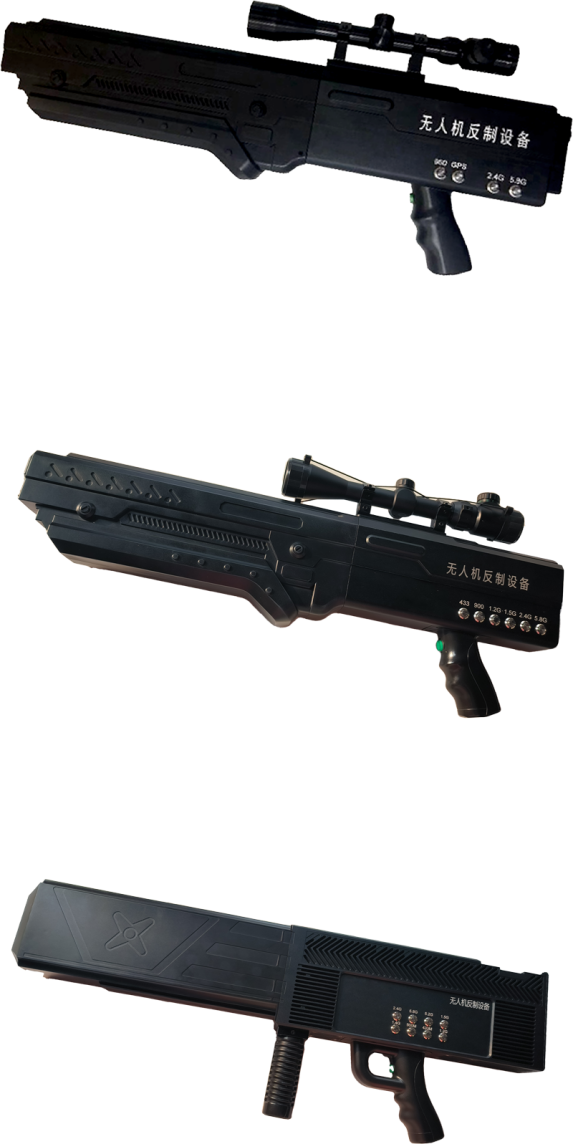

Portable UAV Countermeasure Gun

GWDEF-CM100

The Portable UAV Countermeasure Gun adopts ultra-high frequency broadband interference technology and radio frequency suppression technology to cut off the connection between the drone and the remote control, thereby forcing the drone to perform landing or return. And after being controlled, the drone has cut off the image transmission channel, and will not be able to transmit videos, aerial photos, or receive any instructions from ground remote controllers, thus achieving the goal of protecting key areas and preventing privacy from being leaked.



Function and features

① Easy to operate and convenient to carry;

② The frequency band is independent and controllable, with a clear purpose;

③ Fast interference response time, quick and effective handling;

④ Working 24 hours all day, with strong adaptability to the environment;

⑤ Develop flexible response strategies based on the target location.



Application Scenarios

The device adopts a portable design, which can be operated by a single person and can be quickly deployed. It is suitable for single soldier carrying and areas that require drone defense such as the wild field and activity sites. It can also be used in conjunction with fixed equipment to form a more powerful comprehensive defense system.



Operation Parameters


Output Terminal


Operating Frequency

Average Output Power


Channel Output Power

1.5G

1550-1620MHz

44dBm

20dBm/30KHz(min)

2.4G

2380-2400MHz

44dBm

20dBm/30KHz(min)

5.8G

5720-5850MHz

43dBm

20dBm/30KHz(min)

900M

900-930MHz

44dBm

20dBm/30KHz(min)

5.2G

5180-5280MHz

44dBm

20dBm/30KHz(min)

1.4G

1420-1450MHz

44dBm

20dBm/30KHz(min)

1.2G

1170-1280MHz

43dBm

20dBm/30KHz(min)

433M

433MHz

44dBm

20dBm/30KHz(min)

Power Supply:AC220V-DC5V          Interference Radius:800-1500M

Power Consumption:192M            Weight:4.0kg                  Size( L x W x H):58x7x30CM
