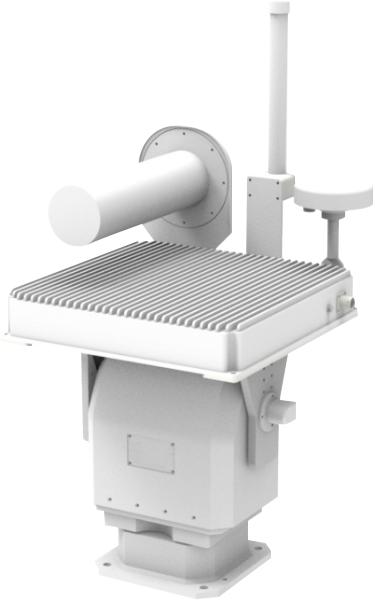

Integrated Directional and Omnidirectional Navigation Deception Equipment

GWDEF-ND3000

Capable of performing eight heading deception (north, south, west, east, northwest, southwest, southeast, northeast) on unmanned aerial vehicles; The system has two signal transmission modes: directional and omnidirectional; Capable of performing heading deception, angle deception, and no fly zone emergency landing on unmanned aerial vehicle navigation signals; Capable of automatic/manual adjustment of signal output power; Capable of automatically locating the device's location through GPS; Capable of integrating radar, electro-optical and other equipment to achieve designated point emergency landing of unmanned aerial vehicles; Capable of intelligent device inspection and reporting the abnormal.



① Multi mode satellite navigation deception;

② Multiple disposal methods, including evacuation, forced landing, trapping, and designated location landing;

③ Capable of achieving 24-hour unmanned operation;

④ Multiple automatic response strategies, power adaptive adjustment;

⑤ Strong adaptability to the environment, working at all times all day;

⑥ Directional and omnidirectional integration, with a longer directional distance and wider omnidirectional coverage.



Application Scenarios

Suitable for various scenarios requiring drone countermeasures, it can be quickly deployed in the political core areas of the Party, government, military, national defense, aviation airports, ports, prison, venues for foreign affairs and major events, sports venues, oil refineries, nuclear power plants, and industrial facilities.



Operation Parameters

Index	Technical Parameters and Requirements
Directional Deception Distance	7km~8km
Omnidirectional Deception Distance	3km~5km
Signal Format	GPS (L1).GLONASS(L1). BDS (B1). GALILEO(E1)
Control Scope	Horizontal:0°~360°;Pitch direction:-40°~+60°
Deception Response Time	<10s
Signal Transmission Power	10mW~10W
Signal Transmission Duration	≥24 hrs
Gimbal Positioning Accuracy	≤0.2°
Gimbal Rotation Speed	Horizontal:0.1°/s~30 °/s adjustable Pitch direction:0.1°/s~12°/s adjustable
