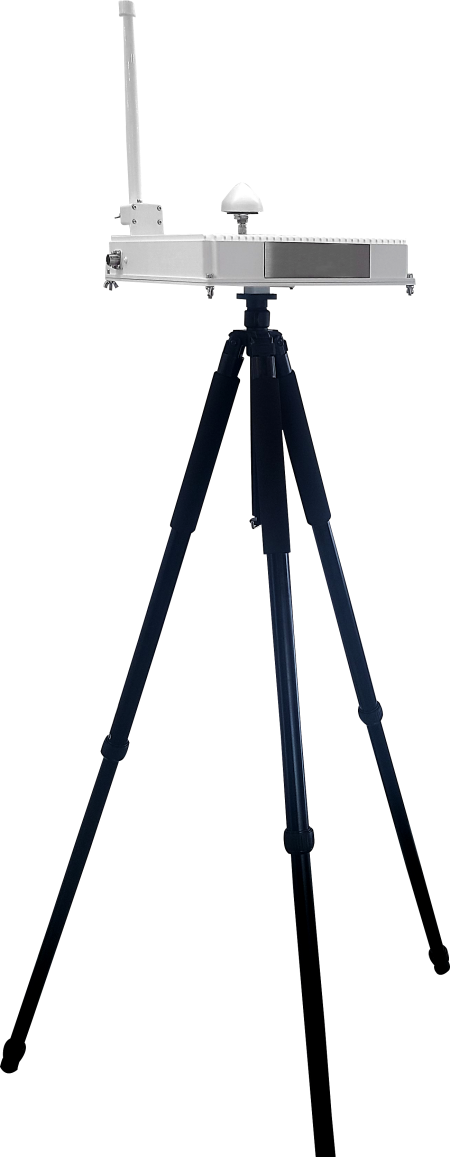

Navigation Deception Device

GWDEF-ND2000

The Navigation Deception devices use simulated satellite navigation signals to perform location spoofing, speed spoofing, and time spoofing on drones. The device implements different deception strategies on the drone navigation terminal to achieve functions such as driving away, forced landing, and direction guidance for the drone.

The system, combined with radar, radio and other detection methods, can accurately induce unmanned aerial vehicles to land at designated locations.



Application Scenarios

Suitable for various scenarios requiring drone countermeasures, it can be quickly deployed in the political core areas of the Party, government, military, national defense, aviation airports, ports, prison, venues for foreign affairs and major events, sports venues, oil refineries, nuclear power plants, and industrial facilities.

Operation Parameters

Index	Technical Parameters and Requirements
Deception Intervention Distance	500-5000m
Control Scope	360°(Directional, Omnidirectional)
Signal Transmission Power	10mW-10W
The format of the transmitted navigation signal	GPS, BDS, GOLONASS, GALILEO
Deception Methods	By giving a virtual direction, virtual speed, driving away, forced landing, designated point
Total Power	≤20W
