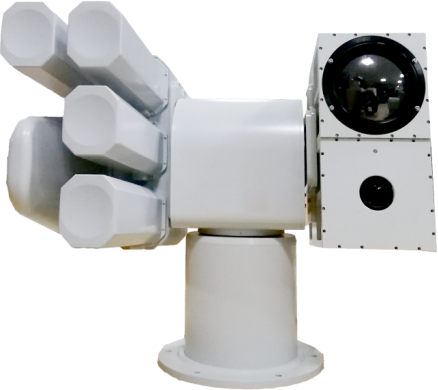

Integrated UAV Countermeasure System

GWDEF-RMRC1000

1 Product Introduction

The Multi Spectral Thermal Imaging Detection, Recognition and Combat Integrated UAV Countermeasure System, integrating ultra long focal length light visible fog transparent high-definition network camera, long-range passive infrared thermal imaging detector, intelligent recognition module, servo heavy-duty gimbal and jammer combined, realizing multi spectral and multi-channel day night complementary imaging, and 24-hour day night monitoring in low light, severe weather, night and other conditions.



2 Product Features

 ① Integrated multispectral imaging, ultra long focal length, fully automatic zoom, focusing, optical fog transmission, long-distance target imaging;

② Long distance low altitude target classification and recognition, full screen automatic discovery, automatic locking, and automatic tracking;

③ Support integration with third-party radar and spectrum detection systems to achieve multi-party collaborative operations;

④ Integrated design of detection and combat, covering mainstream drone frequency bands, supporting multi band directional interference;

⑤ Unmanned duty, achieving 24/7 uninterrupted and automatic defense operations, with full process log recording.



Application Scenarios

 UAV countermeasure, recognition and tracking of low, small and slow flying objects



3 Operational Parameters

Index	Technical Parameters and Requirements
Scope of Control	GNSS(GPS/GLONASS/Galileo L1，BDS B1)，2.4G，5.8G
Effective Interference Distance	Optional distance ≥ 500-3000m
Transmit Frequency	channel：（1520～1620）±5MHz channe2：（2400～2500）±5MHz channe3：（5720～5875）±5MHz channe4：（835～945）±5MHz channe5：（433）±5MHz
Frequency Power	1.5GHz-50W，2.4GHz-50W，5.8GHz-30W，900MHz- 50W， 400MHz-50W
