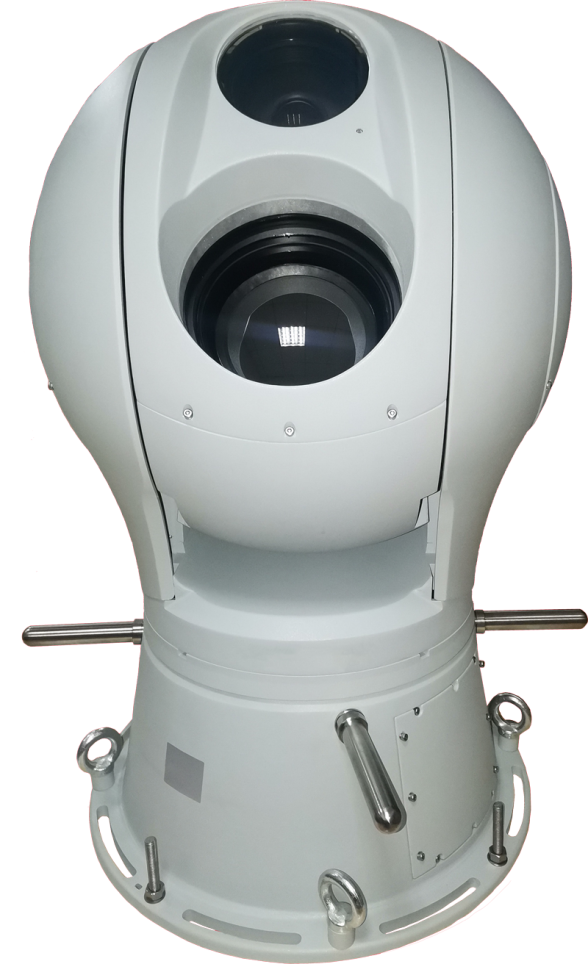

Ball Shaped Intelligent Tracking Servo Gimbal

GWDEF-OE3000

1 Product Introduction

The Ball Shaped Intelligent Tracking Servo Gimbal adopts a fusion of high-definition visible light, infrared thermal imaging, laser night vision and other multispectral technologies, which can achieve all-day clear imaging, ultra long focus, long-distance target detection, full screen automatic search, discovery, locking and tracking.

2 Function and features

① Dual spectral images have automatic zoom and focus integration, while visible light images support optical fog transmission;

② Intelligent application: edge computing, deep learning algorithm, supporting target detection, target recognition, target tracking;

③ Optional multi-sensor signal access, sensor alarm, voice intercom, environmental parameters, power management, etc;

④ Open architecture, capable of accepting guidance of multi-party systems such as radar, AIS, ADS-B, spectrum and TDOA;

⑤ Accurate azimuth and field of view feedback can achieve precise positioning of moving targets such as drones, vehicles, and ships;

⑥ Independent IP or virtual dual IP, supporting national standard protocols, freely accessing to various NVR, IPSAN, Management platform;

⑦ Three proof structure, wind resistance of level 15, suitable for application in harsh environments.

3 Application Scenario

Smart border defense, smart coastal defense, mobile vehicle mounted, ship defense, etc

4 Operation Parameters

Index	Technical Parameters and Requirements
Image Resolution	1920*1080 @25fps
Focal Length	Continuous zooming 10-550mm；12.3-800mm
Horizontal Speed	0°~360° 0.05°~80°/s
Pitch range Speed	-60°~+60° Vertical key control speed：0.05°~60°/s
