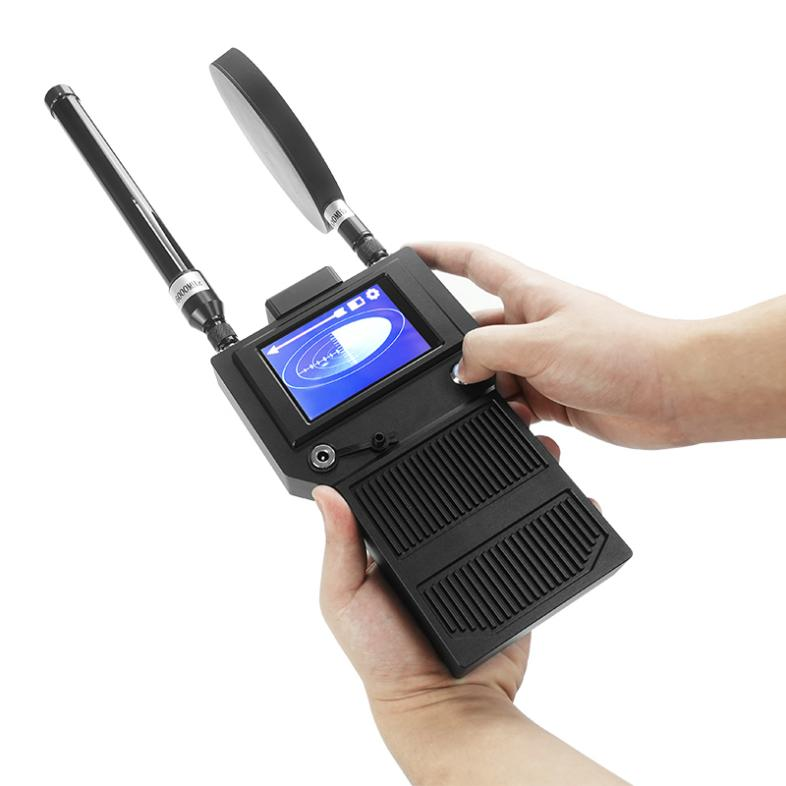

Individual Drone Detection and Early Warning Instrument
GWDEF-RM200
The Individual Drone Detection and Early Warning Instrument adopts self-developed low-power digital analog hybrid receiving technology and advanced power management technology. It uses high gain, low gain, and directional ultra wideband antennas, and can make sound and vibration alarms to common civilian unmanned aerial vehicles including quadcopters, fixed wings, DIY drones, racing drones, etc. while also achieving extremely low false alarm rates in complex electromagnetic wave environments.
Features: sensitive alarm, low false alarm rate, small size, shielding well
Application Scenarios:
Used in conjunction with portable UAV interference equipment to compensate for the problem of untimely detection of UAVs in the work.
|
Detection Band |
400-1500MHz |
|
2200-2500MHz |
|
|
5100-5900MHz |
|
|
Battery Capacity |
11.1V 4Ah |
|
Detection Range |
1.5-2km |
|
Probe Angle |
360° |
|
Side Angle |
20° |
|
Charger Type
|
Adaptation charger 12.6V
|
|
Dimension |
Length Height and thickness: 220*130*35mm (excluding antenna) |
|
Antenna 1 |
2.4G/5.8G High gain omnidirectional fiberglass antenna |
|
Antenna 2 |
100-6000MHz full band omnidirectional fiberglass antenna |
|
Antenna 3 |
100-6000MHz full band directional antenna |
|
Weight of the Main Unit |
750g (without antenna) |
|
Weight |
950g (including antenna) |
|
Suitable for DJI, Daotong and DIY quad-copter, fixed wing, racing drone |
|
