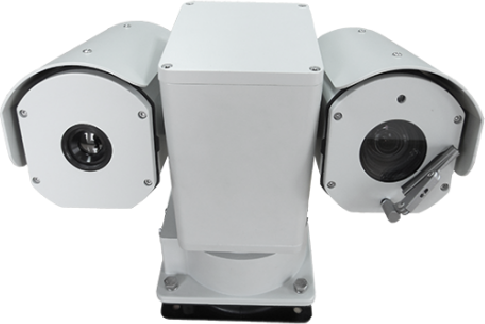

Dual Spectrum Infrared Night Vision T-type Gimbal

GWDEF-OE2000

1 Product Introduction

The Dual Spectrum Infrared Night Vision T-type Gimbal Camera adopts a high-strength shock-absorbing alloy die-casting shell on the body, with overall three proof spray coating. It has the performance of heat insulation, high and cold temperature resistance, impact resistance, corrosion resistance, and wind and shock absorption. Built in high-definition of light & fog visible network camera and high-sensitivity thermal imaging detector, suitable for various close range target detection, tracking, it could realize 24 hours daily uninterrupted monitoring in condition of low light, severe haze weather and night.

Product Features

① Fully automatic zoom, focusing, optical fog transmission, and servo tracking integrated design

② Visible light heating image or visible light plus laser combination, multi-channel imaging, data fusion

③ Edge computing, built-in more than 80 target classification and recognition algorithms, supporting specific target detection and recognition

④ Wide range design, suitable for various close range target detection and tracking

⑤ High ingress protection, ultra-low temperature operation, shock absorption design

⑥ Suitable for short-range defense in high-level and harsh environments

Application Scenarios

Application scenarios such as restricted area perimeter, rail transit, mobile vehicles, and maritime police ships.

4 Operation Parameters

Index	Technical Parameters and Requirements
Focal Length	F6.5~312mm
Aperture	Fw1.6~Ft4.8
Horizental View Angle	62.8w x 1.65t
Image Sensor	1/2.8″ 2.13MP Sony CMOS 1/2.8″ 2.13MP Sony scan CMOS
