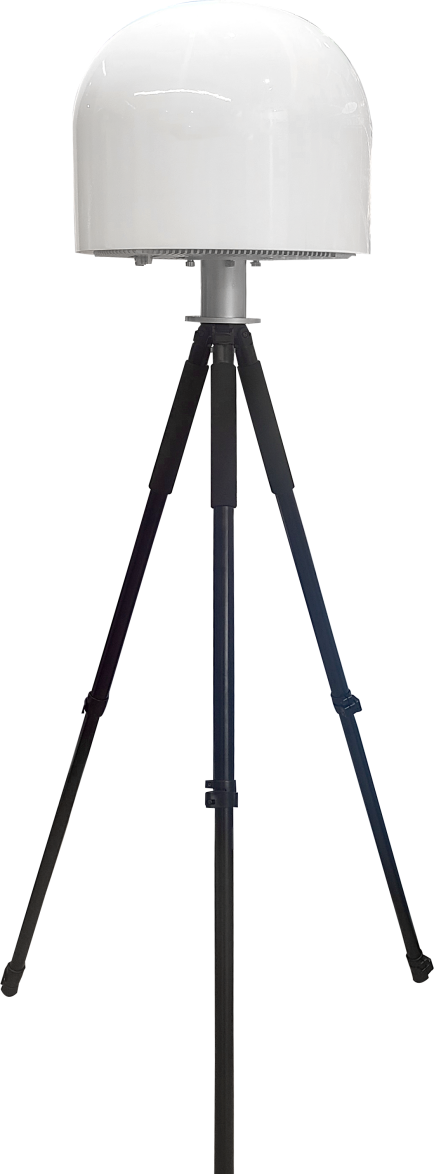

Radio Monitering Equipment

GWDEF-RM100

1 Product Introduction

Radio monitoring equipment can achieve real-time search, detection, and alarm of unmanned aerial vehicle data transmission and measurement and control signals. It has the functions of parameter measurement, single station direction finding, and rough distance measurement of UAV data transmission and measurement and control signals. It also has pilot positioning and black and white listing functions. Combined with recognition databases, it can identify unmanned aerial vehicle models and manufacturers. The equipment can also locate and continuously track unmanned aerial vehicles, and display their positions and trajectories in real-time on electronic maps.

2 Product Features

① Passive detection, does not cause electromagnetic interference;

② Modular design, easy to install and deploy;

③ Pre collection monitoring, rapid monitoring equipment in complex electromagnetic environments;

④ Multi station network monitoring and positioning;

⑤ Capable of identifying friend or foe on black and white lists;

⑥ Capable of locating the position of the pilot and identifying the target UAV model and manufacturer.

3 Application Scenarios

Suitable for various scenarios requiring drone countermeasures, it can be quickly deployed in the political core areas of the Party, government, military, national defense, aviation airports, ports, prison, venues for foreign affairs and major events, sports venues, oil refineries, nuclear power plants, and industrial facilities.

4 Operation Parameters

Index	Technical Parameters and Requirements
Monitoring Frequency Range	300MHz—6000MHz
Detection Distance	3km/7km/10km
Direction Finder Sensitivity	≤10dBµV/m
Direction Finder Accuracy	≤5°(RMS)
Power	≤50W
